UNIFLOW AHU
The Uniflow units of Luftek are designed in such a way that they are flexible to accommodate strict requirements from clients with certified components & customization. Double skin air handling units 502LK, 503LK and 251LK Eurovent certified series are having modular construction and an excellent rating according to the EN1886 standard. Uniflow units cover a large range of air volume with 35 different models for the clients to choose their suitable requirement.
Key Elements
- Eurovent certified best ratings in line with EN1886 standard
- Units comply with ENISO9223 standard
- Heating and cooling coils certified by AHRI 410
- Certified fans with AMCA 300 for sound and AMCA 210 on performance
- Filters that are ISO16890/EN779 certified
- EN1886 Rated 502LK Series
- T2: Thermal Conductivity
- TB2: Thermal Bridging
- D1: Casing Strength
- L1: Casing Leakage
- F9: Filter bypass leakage
- EN1886 Rated 251LK Series
- T3: Thermal Conductivity
- TB3: Thermal Bridging
- D1: Casing Strength
- L1: Casing Leakage
- F9: Filter bypass leakage
Technical Details
- 1000 - 42000 CFM air flow ranges
- Double skin panels with 50mm thickness.
- The framework has an extruded aluminium construction and with Thermal Break.
- Injected Polyurethane foam insulated panels.
- Multiple-speed Motor
- Rockwool insulation (is optional).
- Has stainless steel drain pan for removal of condensate.
- Has an inner plain galvanized sheet and outer precoated sheet casing.
- Aluminium and Stainless-steel sheet (optional).
- IE2 / IE3 efficient motors with IP55 protection & class F insulation.

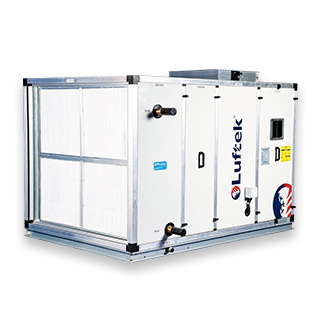

SMART AHU
Smart units come with an inbuilt control panel, sensors, and control valves. The unit conserves energy with its intelligent controller, regulating the fan and chilled water valve based on the load requirement. This unit is BMS compatible with BACnet or MODBUS protocol. The HMI unit provides more flexibility to clients to view and set parameters via touch of button.
Key Elements
- Eurovent certified best ratings in line with EN1886 standard
- Units complying with ENISO9223 standard
- Heating and cooling coils certified by AHRI 410
- Certified fans with AMCA 300 for sound and AMCA 210 on performance
- Filters that are ISO16890/EN779 certified
- Uses EC Fans for saving energy
- EN1886 Rated 502LK Series
- T2: Thermal Conductivity
- TB2: Thermal Bridging
- D1: Casing Strength
- L1: Casing Leakage
- F9: Filter bypass leakage
Technical Details
- 1000 - 42000 CFM air flow ranges
- Double skin panels with 50mm thickness
- The framework has an extruded aluminium construction and with Thermal Break.
- Injected Polyurethane foam insulated panels.
- Rockwool insulation (is optional).
- Has stainless steel drain pan for removal of condensate.
- Aluminium and Stainless-steel sheet (optional).
- IE2 / IE3 efficient motors with IP55 protection & class F insulation.
CLEAN ROOM AHU
Critical places like pharma Industry, hospitals, sterile rooms, and food industry need a construction level in Air Handling Units to block the growth of microbes and to transfer it through air stream. These clean room units from Luftek are designed in such a way that it complies VDI 6022 and DIN1946-4 for its hygiene requirement in the AHU.
Key Elements
- Eurovent certified best ratings in line with EN1886 standard
- Accessories certified by VDI 6022
- Units that comply with ENISO9223 standards.
- Heating and cooling coils certified by AHRI 410
- Plug fans that are direct driven with EC motors or AC Motors, that are AMCA 210 on performance and AMCA 300 for sound certified.
- Filters that are ISO16890/EN779 certified
- EN1886 Rated 502LK Series.
- T2: Thermal Conductivity
- TB2: Thermal Bridging
- D1: Casing Strength
- L1: Casing Leakage
- F9: Filter bypass leakage
Technical Details
- 1000 - 42000 CFM air flow ranges
- Double skin panels with 50mm thickness
- The framework has an extruded aluminium construction and with Thermal Break.
- Injected Polyurethane foam insulated panels.
- Rockwool insulation (is optional).
- Has stainless steel drain pan for removal of condensate.
- Has an inner plain galvanized sheet and outer precoated sheet casing.
- Aluminium and Stainless-steel sheet (optional).
- IE2 / IE3 efficient motors with IP55 protection & class F insulation.
