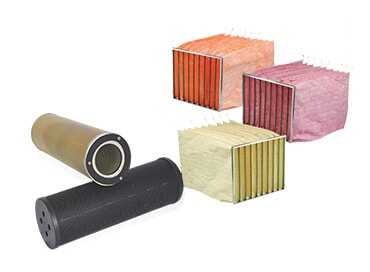

Gas Phase Filters

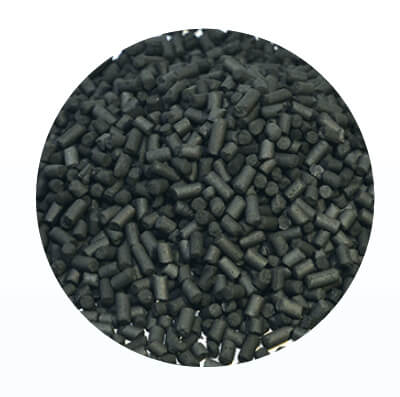

Terracarb is derived from coal based, superior quality, Virgin Activated Carbon without Binders. Formed in porous pellets, extruded cylindrical, Terracarb has tested and approved with high capacities and removal efficiencies for a wide range of pollutants by technique of adsorption, particularly, when supplied with Air Filtration systems with positive sealing.

• Coal Based Virgin Activated Carbon
• Adsorption techniques are utilized to take off target contaminants.
• Helps to remove a wider range of pollutants.
• Multiple impurities can be handled simultaneously.
• Is the best medium for all the Indoor Air Quality requirements.
• Appropriate for all installation types like Cassettes, Deep Filtration Beds, and Canister Module equipment system.
• Easy replacement and installation.

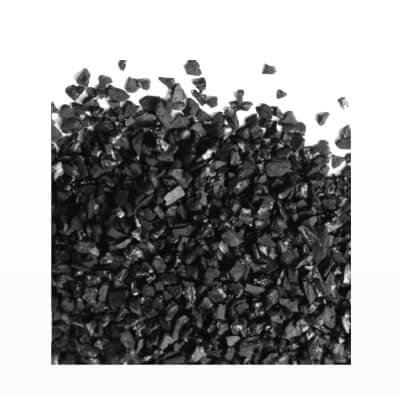

Terracarb G is derived from Superior Quality, Coal or Coconut Shell Based, Virgin Activated Carbon, with NO-Binders, Formed in Granular shape with various Mesh Sizes, Porous Pellets, Terracarb G is guaranteed to have high removal efficiencies and capacities for a broad spectrum of pollutants through absorption technique testing and approval, when paired with positive sealing air filtration systems.

• Coal Based Virgin Activated Carbon
• Adsorption techniques are utilized to take off target contaminants.
• Can remove a wide range of contaminants.
• Multiple impurities can be handled simultaneously.
• Is the best medium for all the Indoor Air Quality requirements.
• Appropriate for all installation types like Cassettes, Deep Filtration Beds, and Canister Module equipment system.
• Easy replacement and installation.

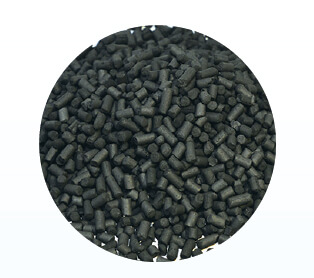

Terracarb Acid is derived from coal based, superior quality, activated carbon without binders, formed in porous pellets, extruded Cylindrical, suitably impregnated to target all types of acid gas Pollutants. Terracarb Acid is tested & approved with higher capacities and removal efficiencies for a wide range of specific pollutants by chemisorption method to eliminate pollutants by Absorption, Adsorption and Chemical reaction, particularly, when supplied with positive sealing Air Filtration System.

• Coal Based Virgin Activated Carbon
• Specifically, Target Acid Gas Impurities
• Method of chemisorption is used to remove the target pollutants.
• Can Remove Wide Spectrum of Impurities.
• Can Simultaneously handle Multiple Impurities
• Best medium to utilize in standard carbon based system
• Totally Safe and Non-Toxic (New) Media.
• Appropriate for all installation types like Cassettes, Deep Filtration Beds, and Canister Module equipment system.
• Easy to Install and Replace.

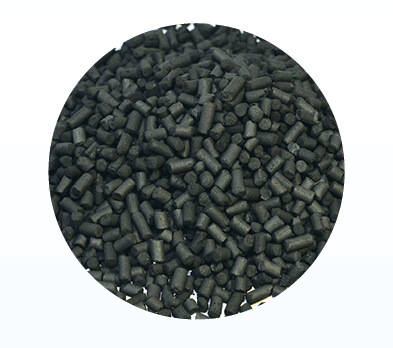

Terracarb base is obtained from coal based, superior Quality, Activated Carbon without binders, formed in porous pellets, extruded cylindrical suitably impregnated to target different ammonia-based pollutants. High capacities and removal efficiencies of Terracarb base are evaluated and authorized for variety of specific pollutants using the chemisorption method of absorption, adsorption, and chemical reaction, this is especially true when base is supplied with air filtration system with positive sealing.

• Coal Based Virgin Activated Carbon
• Particularly, Target ammonia & amine impurities.
• Method of chemisorption is used to remove the target pollutants.
• Can Remove Wide range of Impurities.
• Can concurrently handle Multiple Impurities.
• Optimal media for a standard carbon based system.
• Totally nontoxic and safe medium.
• Appropriate for all installation types like Cassette, deep filtration beds & Canister Module equipment systems
• Easy replacement and installation

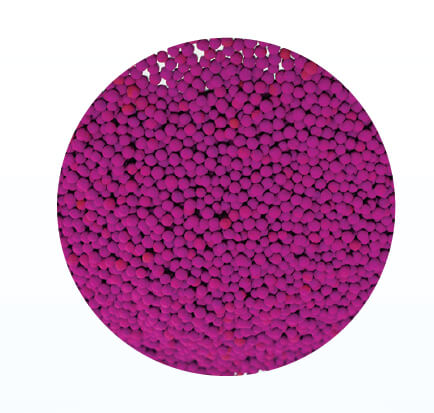

Terraoxi is developed from Activated Alumina of superior quality, combined with other special binders, formed in porous pellets, spherical, accurately impregnated with best quality potassium permanganate (KMnO4) to target wide spectrum of gaseous pollutants. TerraOxi is tested and approved high capacities and Efficiencies for several specific pollutants by the method of chemisorption particularly when supplied with air filtration system with positive sealing.

• Activated Alumina Based Oxidization Media.
• Chemisorption technique is used to eliminate target contaminants.
• Can eliminate an extensive range of pollutants.
• Simultaneously handles multiple impurities.
• Best medium for all Indoor Air Quality Requirements.
• Completely (New) Non-Toxic and safe media.
• Appropriate for all installation types like Cassette, Deep Filtration Beds and Canister Module equipment systems.
• Easy Replacement and Installation.

TERRAOXI Blend is an equal volume blend of TerraOxi or TerraCarb, Fresh Chemical Media to aim the removal of a wide range of Gaseous Pollutants. TerraOxi Blend is Tested & Approved High capacities & removal efficiencies for several specific pollutants by Adsorption & Chemisorption/Absorption method particularly, when supplied with air filtration system with Positive sealing.

TERRAOXIDE Blend is usually designed to target a varied range (low concentration) of contaminants instead of removing some specific (high concentration) of Pollutants. The use of TerraOxi blend helps the designer to save equipment space by constructing one bed for the entire Spectrum of pollutants rather than having a few beds of different media.

• The Equal Volume Blend of Terracarb and Terra Oxi Media.
• The Alumina Based Oxidization Media was activated.
• Activated Carbon Based Adsorption/ Absorption Media.
• Can Remove Wide Spectrum of Impurities.
• The most suitable medium for Indoor Air Quality requirements.
• Totally Safe and Non-Toxic(New) Media.
• Ideal for a variety of installations like cassette and canister module equipment systems, deep filtration beds, and more.
• Easy to Install and Replace.

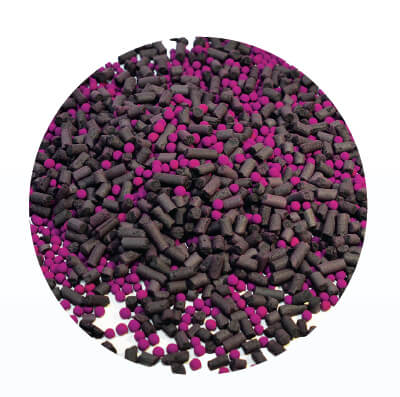

TerraBlend CC is a special, unique brand of fresh chemical media, TerraOxi/TerraCarb Acid, to lower the wide spectrum of Acid Gas contaminants. Terra Blend:CC is tested & approved high removal capacities and efficiencies for specific pollutants by Adsorption & Chemisorption / Absorption method especially, when supplied with Air filtration system with positive sealing.

Apart from eliminating certain specific pollutants with high concentration, the Terrablend CC is often intended to target a broad spectrum of contaminants with low to medium concentrations. Instead of having multiple beds with various media, the designer can save equipment space by using TerraBlend CC to create a single bed that covers the full spectrum of contaminants.

• The Special/custom blend consists of TerraOxi+TerraCarb Acid media.
• Activated Alumina Based Oxidization Media.
• Activated Carbon based medium of absorption.
• Can Remove Wide Spectrum of Impurities.
• The most suitable medium for Indoor Air Quality requirements.
• Completely non-toxic (new) and safe Media.
• Appropriate for all installation types like Cassettes, Deep Filtration Beds, and Canister Module equipment system.
• Easy replacement and installation.

With exceptional blend of TerraOxi, TerraCarb, Fresh Chemical Media and TerraCarb Acid, the Terrablend BS efficiently removes a broad spectrum of gaseous contaminants from Acid Gas to all sorts of volatile organic compounds (VOCs). TerraBlend BS is tested & Approved high removal capacities and efficiencies for several specific pollutants by Adsorption & Chemisorption / Absorption method particularly, when provided with HAF, Air filtration system with positive sealing.

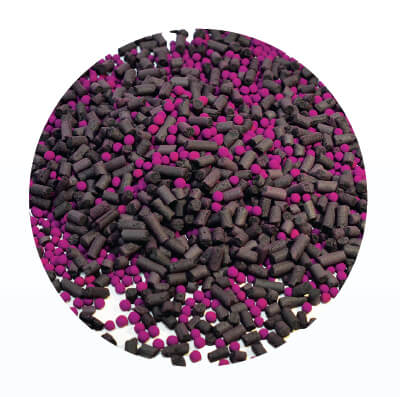

TERRABLEND BS is usually designed to aim a wide range of acid gases and odorous pollutants of low to medium concentration, other than removing some specific high concentration of Pollutants. The use of TerraBlend: BS helps the designer in saving equipment space by designing one bed for complete spectrum of odorous pollutants other than having some beds of different media and good energy save potential.

• Special/custom blend made of Terracarb Acid and Terraoxi medium.
• Activated Alumina Based Oxidization Media.
• Activated Carbon- Based Absorption Media.
• Can Remove Wide Spectrum of Impurities.
• Good potential for energy savings and space conservation.
• Totally Safe and Non-toxic (New) Media.
• Ideal for a variety of installations like cassette and canister module equipment systems, deep filtration beds, and more.
• Easy replacement and installation.

Terra Blend WA is customized special Blend of Fresh Chemical Media TerraCarb/ TerraOxi/ TerraCarb Base, to eliminate Waste/ Sewage Gaseous Pollutants. High removal efficiencies and capacities for a variety of particular pollutants have been tested and approved by TerraBlend WA using the chemisorption and adsorption / absorption approach especially when combined with positive sealing, HAF and air filtration system.

Instead of eliminating small number of particular pollutants at high concentration, Terrablend WA is typically designed to tackle wide range odorous (ow to medium concentration) of contaminants. Designing a single bed for full range of odorous pollutants with Terrablend WA can save equipment space, as opposed to having many beds for various media.

• Custom blend comprises of TerraOxi and Terracarb & Terracarb Base Media.
• Activated Alumina Based Oxidization Media
• Activated Carbon- Based Absorption Media.
• Best media to use for removing sewage and waste odors.
• Totally Safe and Non-Toxic (New) Media.
• Ideal for a variety of installations like cassette and canister module equipment systems, deep filtration beds, and more.
• Easy replacement and installation./li>

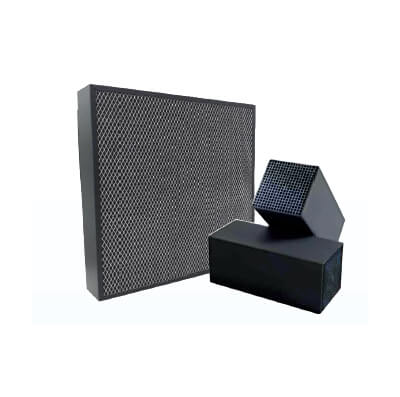

TerraGrid is one of the greatest odor removal media that was created using the most recent advancements in chemical filter media technology. It can be set up in any kind of HVAC requirement to remove almost every chemical contaminant ranging from acid base & volatile organic compounds.

High quality, high density activated carbon media powder, with a minimum of 60% Carbon Tetra Chloride activity – a measurement of activated carbon’s porosity- is used to make the filters in Terragrid modules. TerraGrid has the least pressure drop with highest removal efficiencies and highest contact surface area. This medium has a high hardness & a good abrasion resistance which makes it suitable for achieving ultra-low dust carry-over to the subsequent air stream.

• The most recent advancements in Chemical Filter Media technology.
• Extremely lower pressure drop- hence a higher energy saving capability.
• Available in varied sizes and specifications.
• Can remove wide spectrum of Impurities.
• Ultra-low dust carry over.
• Totally Nontoxic and safe Fresh Media.
• Easy replacement and installation

12Cs and 18Cs cassette modules are made in compliance with all modern specifications needed by industry to obtain maximum energy savings without sacrificing removal performance and efficiency. It is designed universally to fit any type of Retrofit in most types of Track Arrangements.

• The standard plastic (HIPS Extrusion) modules.
• Designed universally to fit any type of Retrofit.
• Designed specially for energy saving purposes.
• Available in standard depths of 12” & 18”.
• Appropriate to work up to 500FPM (2.54m/s)
• Suitable for low PPM to PPB levels of pollutants.
• Availability with all media choices.
• Supplied with Positive Sealing Tracks

The 18CT and 24CT canister modules come in pre-designed sheet metal holding frames that can accommodate a set number of individual modules on each frame. Every holding frame must fit into a standard dimension filter section in the air handlers that can be installed quickly and easily using common fasteners and HVAC equipment tools.

• Plastic and metal modules are available.
• Inlet screen engineered for Low Resistance.
• Available in standard depths of 18” and 24”.
• Appropriate to work up to 500FPM (2.54m/s)
• Suitable for Low PM to PPB levels of pollutants.
• Easy to replace, install and refit.
• Available with all the options of chemical media.
• Supplied with Holding frames in Metal.

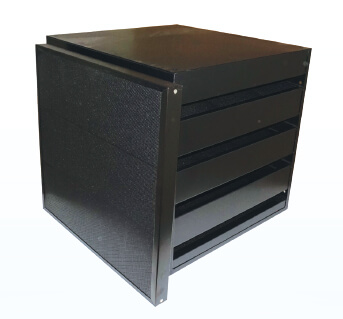

AP TRAYS are generally designed for use in rear, front, or side access carbon filter housing with the AP Trays arranged in V-Shapes. The Trays are made from Galvanized perforated plates and Galvanized channels. A distance holder M8x24 is placed in the middle, blocking the cells from bulging. To prevent settling, the chemical media is filled with honeycomb grid. To prevent air bypass during operations, a soft Gasket is offered on the length side of cell.

• Robust, Sturdy, all metal construction.
• Available in varied sizes and specifications.
• Can eliminate a wide range of pollutants.
• Completely nontoxic and Safe Fresh Media.
• Easy replacement and installation.
• Exceptional Flexibility of Gas Phase Media Options.

Pressurizer or Stand-Alone Purifier is designed to regulate and remove chemical and particle pollutants from air stream, usually at low to medium concentration levels that are appropriate for IAQ, Corrosion Control & other application of similar pollutant removal. With built in low noise fan controls and assembly the units will be self-sufficient for pressurization and recirculation applications.

• Stand-Alone Construction, Low Noise
• Low power EC fans with inbuilt VFD controls.
• Several stages of both chemical and particulate filters.
• Standard Double Wall Constructions.
• Available in different sheet metal choices, like Painted Steel, Aluminium, Stainless Steel(AISI304, 316, 316L and other grades) and Galvanized Steel.
• Available in customized design to suit both Industrial and Commercial requirements.
• A variety of options are available such as base frame U channels. Lifting lungs, weatherproofing, special fan and motors, sound insulation, floor rollers, in built monitoring system, and honeycomb activated carbon grids.

SAP or Side Access Purifier is designed to eliminate and control both chemical and particulate pollutants from air stream, usually, low to medium concentrations appropriate for Corrosion Control, IAQ, and other related pollutant removal applications.

• Double and Single Wall Constructions
• Side access design that is space saving.
• Available in different sheet metal choices like Painted steel, Aluminium, Stainless Steel (AISI 304, 316, 316L & other grades) and Galvanized Steel
• Using the standard filter size components there are more than 50 Standard Size Housings.
• Available in customized design to meet both Industrial and Commercial requirements.
• Base frame U-channels, integrated fan housing, weatherproofing, lifting lugs, intake louvers, and rain louvers are among the available choices.

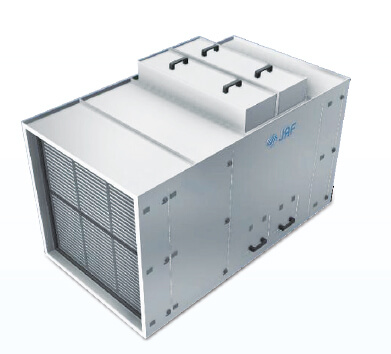

DBP or Deep Bed Purifiers are made to naturally remove and regulate airborne particles and chemical pollutants for extremely strict applications requiring high concentrations of pollutants at particulate matter levels, typically in industrial HVAC systems and other related applications.

• Designed to manage high PPM levels of Pollutant concentrations, naturally, for SEVERE Ambient.
• Offers Comprehensive Air Quality Assurance using both the Chemical and particulate Filtration technologies.
• Chemical Media Beds that are customized, and designed for maximum Media – Pollutant Air Contact, Time, Residence.
• Particulate filters and media inlet screens designed for optimal
• Appropriate for every type of Critical and Industrial Applications.

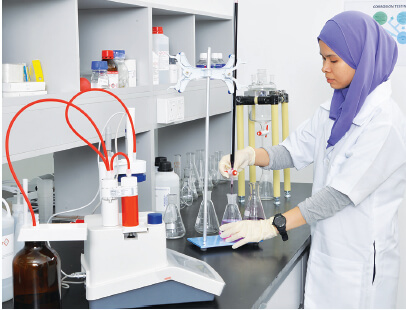

• Offered lab services to have Performance Monitoring, Media Remaining Life Alerts and Field Improvements.
• Available in-Built Fan Sections, factory installed control panels & other customized options.

FAP or Front Access Purifier are designed to eliminate and control both the chemical & particulate pollutants from the air stream, typically low to medium level of concentration suitably for Corrosion Control, IAQ & other similar pollutant removal applications.

• Compact Standard Size Filter Housings with dust filter and chemical Media Module.
• Suitable to Install into duct works and Air Handlers for both retrofit and new requirements.
• Uses low pressure drop chemical media cassette modules to provide a good Energy Saving capability.
• Has universal compatibility because of standard size housings employing standard filter size.
• Can also be supplied with different dust filter efficiencies and chemical media options within standard sizes given.
• Due to Gasketing arrangements and positive sealing track, it guarantees High Removal Efficiencies.

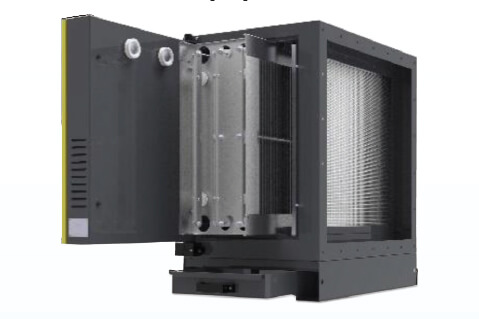

Electrostatic Precipitators (ESP) or EP Series, is a filtration device that removes fine elements like smoke and dust, from flowing air stream by the use of force of an induced electrostatic charge nominally resisting the gas flow through the unit. The units must feature control schemes that enable them to effectively remove particles as small as 0.01μm, including fumes, smoke and mist.

• High Collection Efficiencies to eliminate up to 99% of sizes down to 0.01μm particles.
• Effective to remove exceedingly small particles like mist, smoke, and fumes.
• Dust removal range is large enough, ranging from 0.01 to 1 μm
• Lower Pressure drops.
• Proven outcomes on Kitchen Exhaust Purifications.

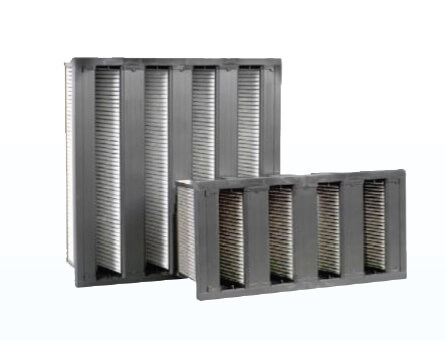

With powdered carbon and chemical media, Mirasorb chemical filter modules are Premium grade, extremely effective and efficient. They are made to target and remove a wide range of gaseous pollutants for a variety of commercial and industrial applications with low to moderate pollution concentrations. Ideal for wide range of indoor air quality requirements, it has demonstrated remarkable efficiency in reducing a broad spectrum of malodorous pollutants, primarily found in urban environments, such as volatile organic compounds, sulfur oxides, ozone and others.

MiraSorb can replace the current HVAC filter of same kind without requiring modifications to the latches or frames. Following a QC check, each Mirasorb filter is sealed in accordance with quality protocols outlined in ISO 9001 Quality manuals.

• Superior quality filters enclosed in robust plastic frames.
• The best Filters for odor / smell removal needs and Indoor Air Quality
• Ideal for swapping out current particulate filters.
• Highest yield and reactivity index powdered media.
• Mini-Pleated V-Bank Design, Low Resistance, and energy saving
• Compatible with several activated carbon media types and additional special blend media
• Completely burnable, resistant to corrosion and free of halogen

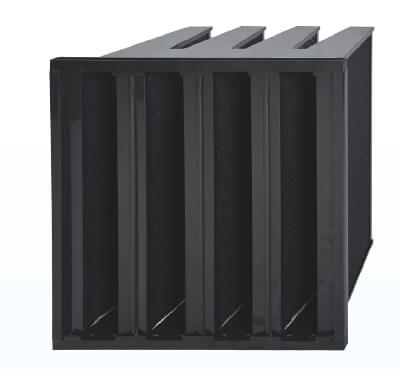

MiraSorb HC are Premium Quality, highly effective & efficient chemical filter modules with powdered carbon / chemical media designed with honeycomb structure to target & remove wide spectrum of gaseous contaminants for different kinds of industrial applications and commercial applications with low- medium pollutants concentrations. Ideal for wide range of indoor air quality requirements, it has demonstrated remarkable efficacy in reducing odorous pollutants, primarily found in metropolitan areas, such as SOx, NOx, Ozone and volatile organic compounds.

• Honeycomb Panel Type Chemical Media Filters.
• Fully Non-Metal, Plastic Frame, Construction
• Ideal for replacing the current particulate filters.
• Maximum yield and reactivity index powdered media
• Mini-Pleated V-Bank Design that saves energy and has high chemical media content, lower resistance, and higher air flow.
• Compatible with several activated carbon media types and additional special blend media
• Fully Incinerable, Corrosion Resistant, Halogen Free

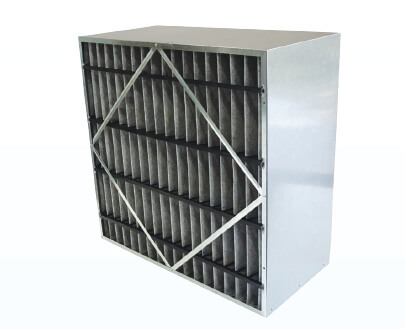

For variety of uses, MiraCarb activated carbon filters are made to eliminate a large variety f airborne molecular pollutant. These are Rigid Type Extended-Surface filter modules that can provide long-lasting performance and optimal removal efficiency.

• The Rigid Type Extended-Surface filter.
• Both gaseous and particulate pollutants can be eliminated.
• For optimal VOC elimination, use 60% activated carbon.
• Appropriate for low PPM-PPB levels of pollutants.
• Available with all choice of Chemical Media.
• Single header, double header, and non-header.

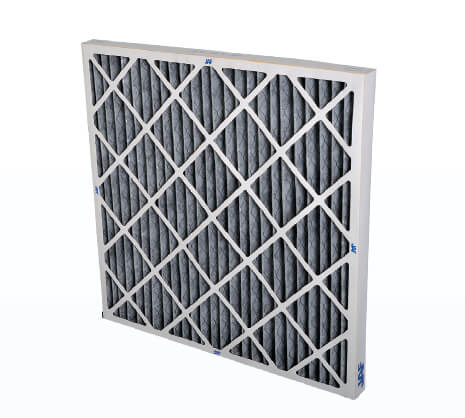

DeaCarb is fully disposable type powdered carbon media filters designed to remove both the gaseous & particulate pollutants for various types of Commercial & Industrial Applications with low to moderate concentrations of pollutants. It is best Suited for various types of Indoor Air Quality (IAQ) requirements and demonstrated to be very successful on a variety of odorous contaminants found in following application, including but not limited to:

• Commercial Buildings, Shopping Complexes
• Health care centers, hospitals and Medical Research and Labs
• Exhaust systems for hotels, food courts, restaurants, and Commercial Kitchens
• Datacenters & Critically Controlled Ambient.
• Libraries, Museums & Auditoriums
• Proven Indoor Air Quality (IAQ) filters.
• Fast and simple way to meet odor removal needs.
• Both gaseous and particulate pollutants can be eliminated.
• Suitable for Replacing existing particulate pre-filters.
• Bonding between chemical media and non-woven polyester fibers.
• Suitable for lower PPB levels of contaminants
• Compatible with several activated carbon media types and additional special blend media.
• Fully Disposable & Totally Safe

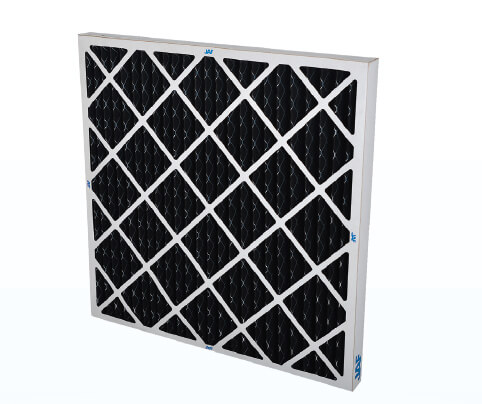

DeaSorb is a completely powdered carbon media filter that is intended to eliminate only gaseous pollutants in very low to low concentrations for a variety of industrial and commercial applications particularly those involving volatile organic compounds. Ideal for different types of low concentration pollutant removal by carbon adsorption technique in many of the Indoor Air Quality (IAQ) requirements and proven to be very effective on variety of foul-smelling contaminants found in the following applications among others:

• Commercial Buildings, Shopping Complexes
• Health care centers, hospitals and Medical Research and Labs
• Exhaust systems for hotels, food courts, restaurants, and Commercial Kitchens
• Datacenters & Critically Controlled Ambient.
• Libraries, Museums and Auditorium
• Media filter with activated carbon for low pollutant amounts
• Ideal Solution for odor removal requirements
• Very Low Carbon Dust Carry Over
• Efficient in substituting the current particles filter.
• Bonding between chemical media and non-woven polyester fibers
• Suitable for low PPB levels of contaminants
• Fully Disposable & Totally Safe
• Minimal pressure drop with a strong potential for energy savings.

For airborne molecular contamination in the form of vapors or aerosols that may have a negative impact on processes or goods, Japan Air Filter offers built-to-order filtration solutions. From pleated filters to chemical media, we offer the solution to remove various chemicals including organics, acids, bases, metals, & dopants offers AMCs a by drawing our extensive industry knowledge to deliver a range of specialized chemical filters for RAU, OAC, FFU and EFU.

Reactivity Measurement Kit (RMK) is designed in compliance with reactivity measurement methods defined as per ANSI/ISA-71.04.2013. The 99.99% pure silver and 99.999% pure copper metal strip coupons that make up the RMK will be affixed to a plastic laminated panel and will begin to react with gases in regulated exposure environment to generate corrosion films. The copper and silver coupons’ corrosion film’s thickness (measured in angstroms) and type will reveal information about degrees of environmental harshness.

• Utilizes ANSI/ISA-71.04.2013 for measuring air reactivity.
• Determines and measures the existence of reactive gases inside the regulated environment.
• Handy tool and a very reliable method to provide Air Quality Assessment Reports
• Capable of assessing effectiveness of fitted chemical filters.
• In compliance with ASTM B 825-02, the constant -current coulometric method is utilized to ascertain rate of corrosion in the exposed environment.

The Environmental Condition Monitor (ECM) is a multiparameter monitoring system that offers continuous environmental monitoring and prompt identification of any degradation that can cause harm to pricey machinery and priceless assets. Corrective action can be conducted when damage to delicate computer and instrumentation systems or electrical equipment is still preventable by early detection of any situations that may cause corrosion.

• Copper and Silver sensors exhibit a corrosion rate in accordance with ANSI/ISA 71.04.2013
• Corrosion rate, relative humidity, temperature, and differential pressure is monitored
• Measures High sensitivity corrosion rate
• Offers both the Digital and Analog outputs
• The on-board datalogger offers optional storage that can be accessed by PC software.

Sales representatives and customers can use our testing service, Media Remaining Analysis. While there are other elements than the gaseous removal procedure that can affect the media’s life, media samples are checked on a regular basis to make sure filter performance is kept within specification. Types of gas-phase filter media offered by ranges from virgin activated carbon, impregnated carbon, and impregnated alumina. Analysis of remaining life of the media is done based on the kind of media that is placed at the intended client location.

• Monitors media usage for a gas phase filter system.
• Analysis can predict chemical media’s remaining life.
• Information obtained reflect
• 3 existing system’s characteristics and effectiveness
• 3 replacement cycle necessary for maximum performance.
