Fan Coil Unit
Fan Coil Unit

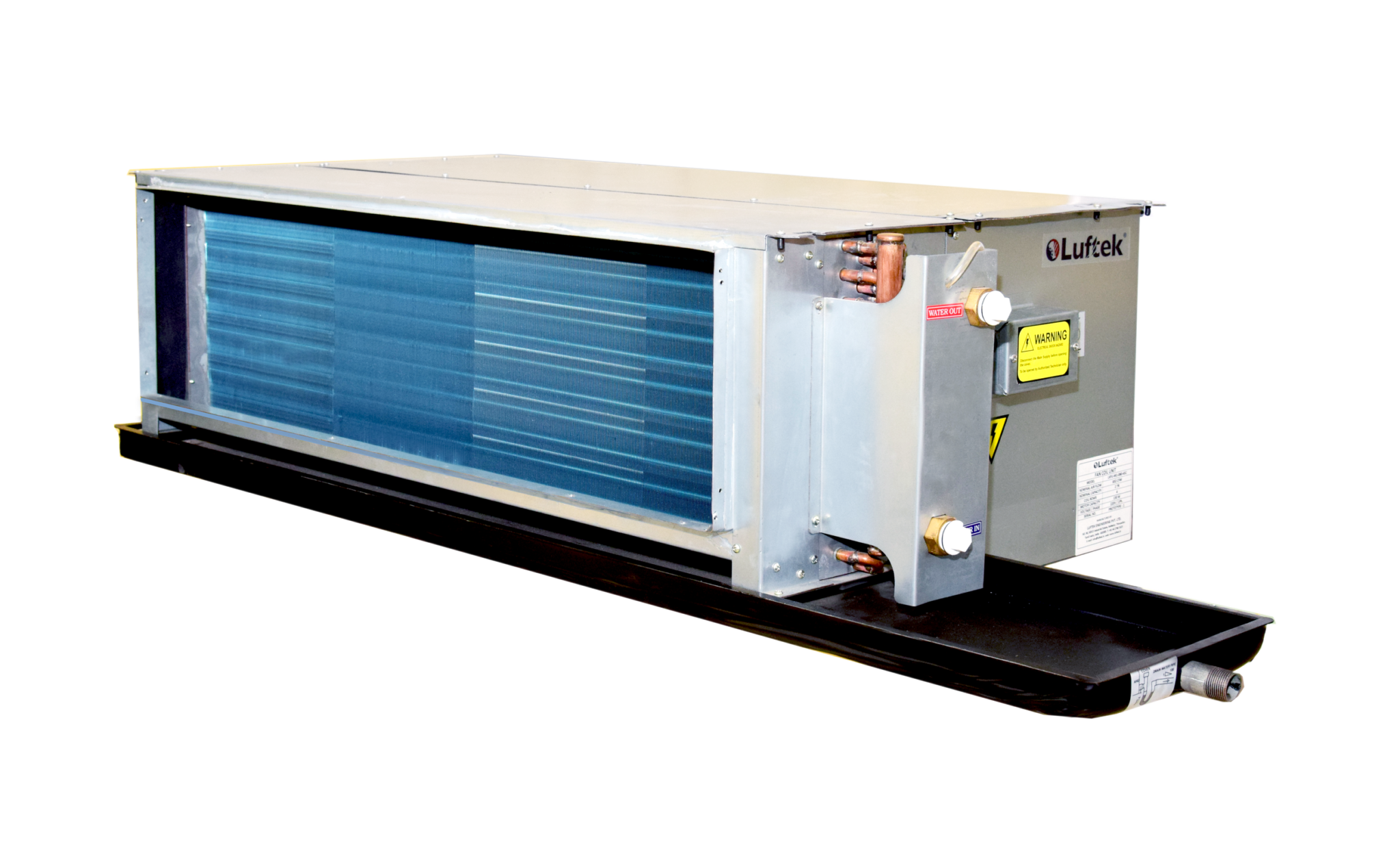

LOW STATIC FCU
The conventional fan coil units designed by Luftek are greatly dependable due to its low noise centrifugal DIDW blowers and motors made with UL-approved parts. This small design is the best fit for hospitals, apartments, and hotels etc
Key Elements
- Construction: Heavy gauge metal sheet
- Low height construction and optimal design.
- Overload protection temperature sensor motors.
- Aluminum impeller construction with low noise.
- For highly efficient cooling or heating coils, it has a counter flow design.
Technical Details
- 400 CFM - 1200 CFM ranges
- Units rated at 30 Pa ESP for nominal air performance.
- A single skin exterior with insulation made of nitrile foam.
- Single-Phase PSC AC motor protected by IP20
- Multiple-speed Motor
- 25mm thick Double skin shell with PU insulation (is optional)
MEDIUM STATIC FCU
The conventional fan coil units designed by Luftek are greatly dependable due to its low noise centrifugal DIDW blowers and motors made with UL-approved parts. This small design is the best fit for hospitals, apartments, hotels etc.
Key Elements
- Construction: Heavy gauge metal sheet
- Low height construction and optimal design.
- Overload protection temperature sensor motors.
- Aluminum impeller construction with low noise.
- For highly efficient cooling or heating coils, it has a counter flow design.
- For 2 pipe and 4 pipe operation, there are multiple row deep options.
Technical Details
- 200 CFM - 1200 CFM ranges
- Units rated at 50 Pa ESP for nominal air performance.
- A single skin exterior with insulation made of nitrile foam.
- Single-Phase PSC AC motor protected by IP20
- Multiple-speed Motor
- For high Delta T application for District Cooling, there are cooling coils
- 25mm thick Double skin shell with PU insulation (is optional)

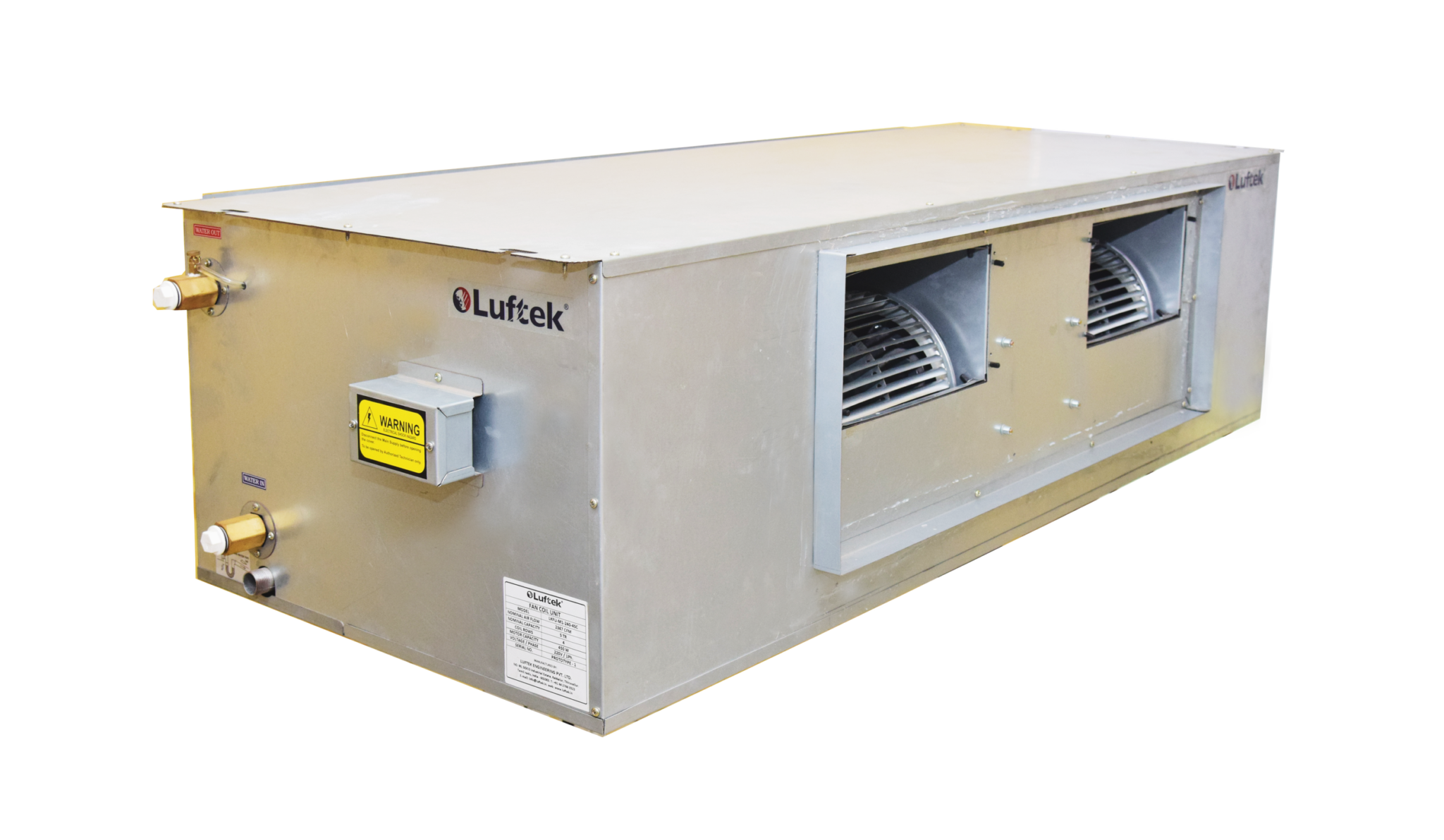

HIGH STATIC FCU
The conventional fan coil units designed by Luftek are greatly dependable due to its low noise centrifugal DIDW blowers and motors made with UL-approved parts. This small design is the best fit for hospitals, apartments, hotels etc.
Key Elements
- Construction: Heavy gauge metal sheet
- Low height construction and optimal design.
- Overload protection temperature sensor motors.
- Aluminum impeller construction with low noise.
- For highly efficient cooling or heating coils, it has a counter flow design.
- For 2 pipe and 4 pipe operation, there are multiple row deep options.
Technical Details
- 800 CFM - 2400 CFM ranges
- Units rated at 75 Pa ESP for nominal air performance.
- A single skin exterior with insulation made of nitrile foam.
- Single-Phase PSC AC motor protected by IP20
- Multiple-speed Motor
- For high Delta T application for District Cooling, there are cooling coils
- 25mm thick Double skin shell with PU insulation (is optional)

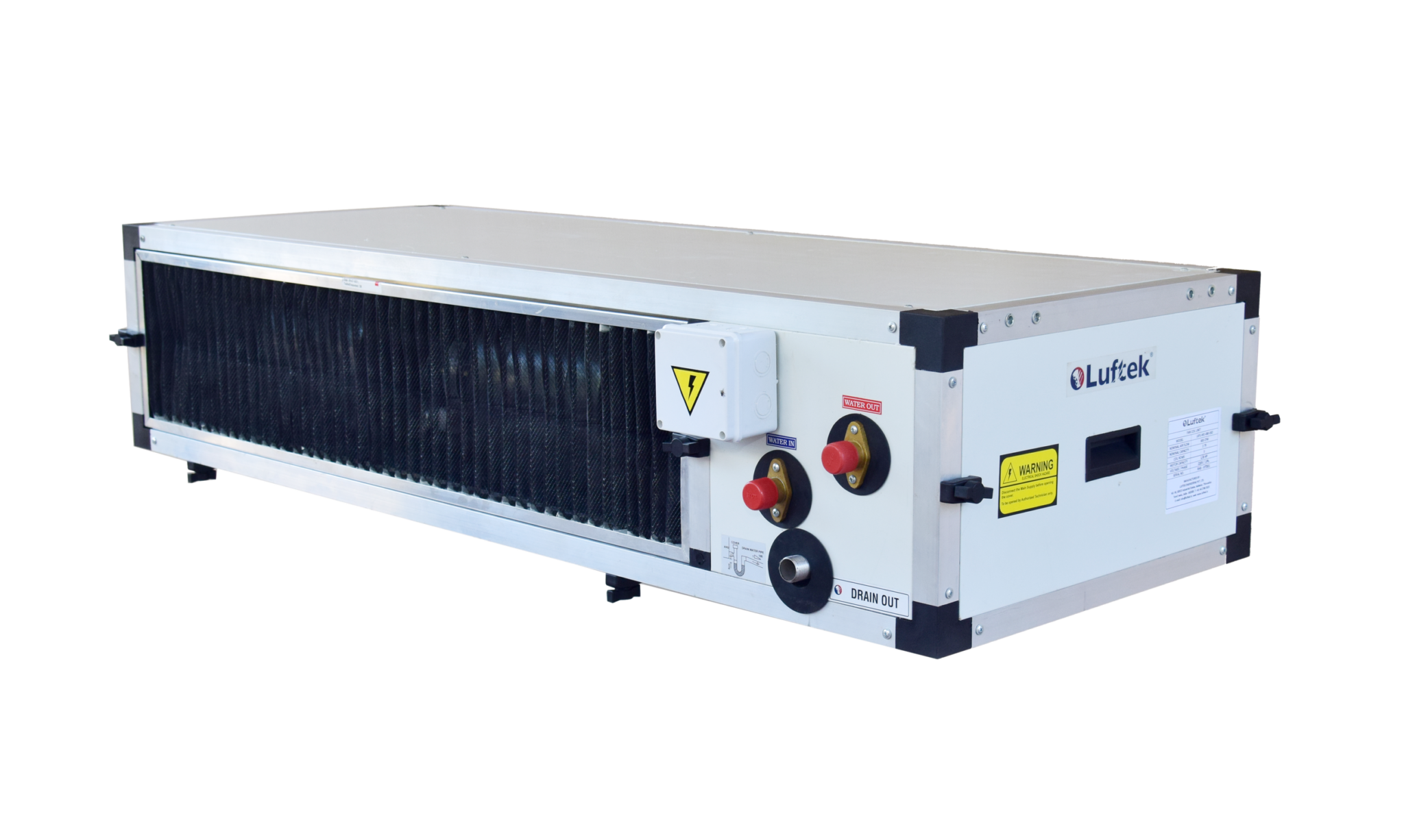

DECORATIVE UNIT
Decorative units of Luftek have a double skin casing with a 25mm thick PU insulation with a linear bar grill on supply side and an egg crate grill on return side. These units are designed in such a way for free throw application with a lowest static.
Key Elements
- Construction: Heavy gauge metal sheet
- Low height construction and optimal design.
- Overload protection temperature sensor motors.
- Aluminum impeller construction with low noise.
- For highly efficient cooling or heating coils, it has a counter flow design.
- For 2 pipe and 4 pipe operation, there are multiple row deep options.
Technical Details
- 200 CFM - 1200 CFM ranges
- Units rated at 50 Pa ESP for nominal air performance.
- A single skin exterior with insulation made of nitrile foam.
- Single-Phase PSC AC motor protected by IP20
- Multiple-speed Motor
- For high Delta T application for District Cooling, there are cooling coils
- 25mm thick Double skin shell with PU insulation (is optional)
